Jake Stookey's

DEFENDER CONTROL PANEL

for MAME


My Defender Panel

6/27/03

It turns out that Mantis Amusements only sells PARTS of the joystick and not the entire thing - bummer. I purchased a 2way joystick from Ebay - it looks like it's probably a Joust joystick - with the yellow ball top. It was about $10.00 if I remember correctly (and I think that was a real steal - I watch joysticks like this go for a lot of cash sometimes!). I finished the control panel and played it a little, and it's ready to send out!

1/19/02

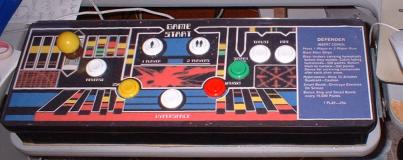

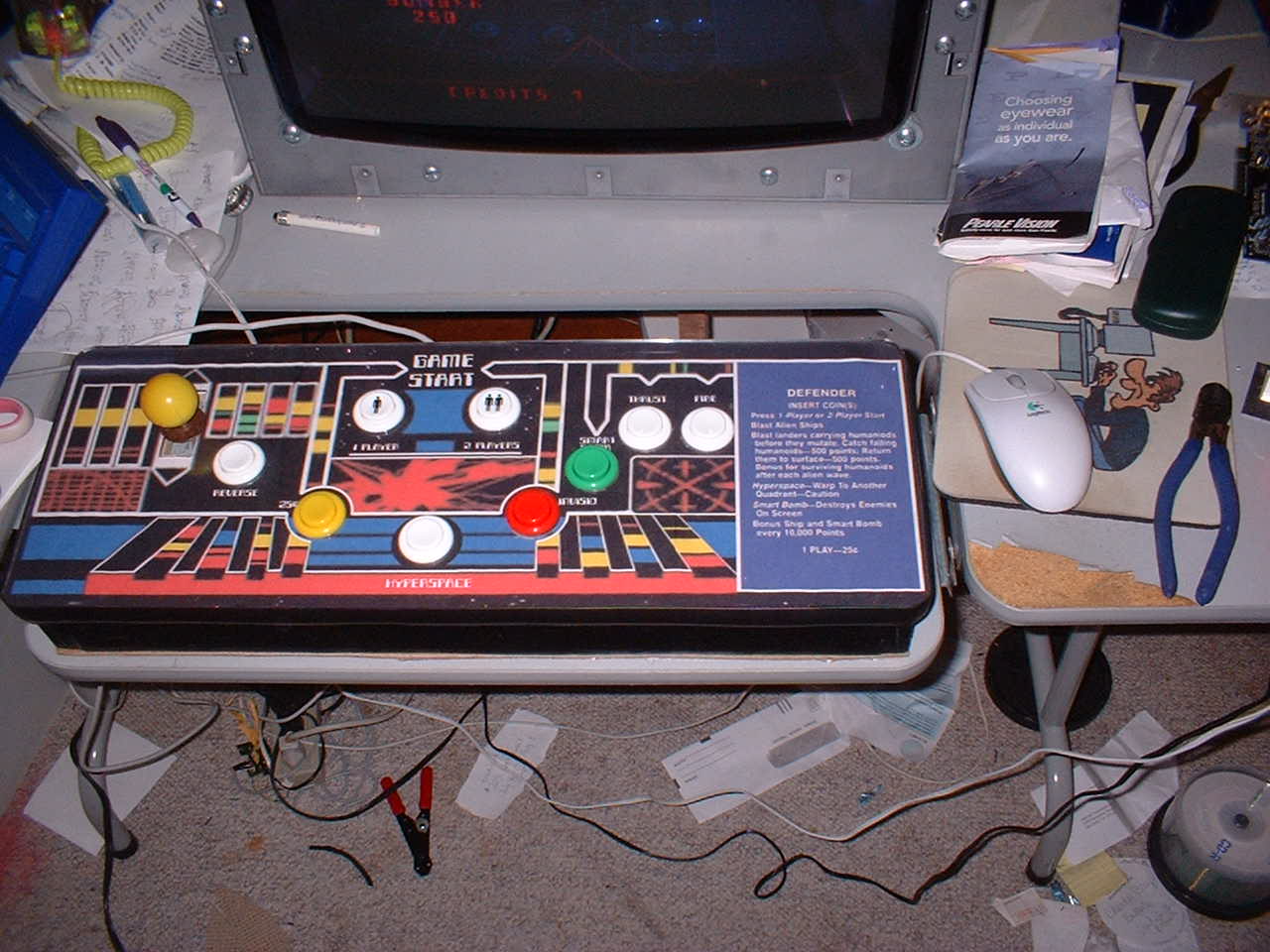

I'm working on this for a friend who really likes Defender. It will be a desktop controller (like the Hot Rod), except that it will only be useful for Defender and Stargate. It sports a Lexan (plexiglass) cover and T-Molding around the outer border. The control panel uses a keyboard hack from a blue Hot Wheels USB keyboard. I gathered a couple of low-ish resolution images of Defender control panels from the internet and put some pieces together to make it look ok with the extra buttons (the Stargate 'Inviso' button and the '25 cents' button). I printed it out on ordinary paper and put it under the lexan.

I am going to get a Defender joystick reproduction. I feel that the 'Reverse' button would be difficult to reach if I were to use a regular joystick because the base for a regular joystick is so wide.

LIST OF INGREDIENTS

Item Source Price
T-Molding 6' T-Molding Dot Com $2.22
Giant sheet of 3/4" Plywood Lowe's $7.57
Wood Screws (Tons of 'em) Lowe's $3.57
Hardboard (Huge sheet) Lowe's $1.99
Buttons (9) Happ Controls $16.20
Joystick (2-Way Defender Reproduction) Ebay $10.00+s/h
Small sheet of Lexan Lowe's $7.57
Blue USB Hot Wheels Keyboard Package To You $1.99
Glue, tape, black paint & white primer Around the house ---
A lot of wire ??? ???

IMPORTANT NOTES

USB KEYBOARD HACKS - I have read that USB keyboards are a bad choice for doing a keyboard hack because they are limited to 6 keys being pressed at one time (and the Operating System enforces it because it's a part of the USB standard, I believe). Generally it will be possible to use more inputs with a ps/2 keyboard. However, with this control panel 6 simultaneous button pressed should be enough.

SPELLING ERROR - On my control panel I mispelled 'Inviso' by typing 'Invisio'. I don't mind, but I fixed it in the version that is in the download section (below).

PAPER OVERLAY - Printing the overlay on paper is ghetto. It's paper. I glued 4 sheets of computer paper together, and it looks a lot better than I expected, so I will leave it that way. If it ages, though, then perhaps getting nice printout at Kinko's or something would be in order.

DIMENSIONS - I initially used an AutoCAD program to give the control panel the exact dimensions of the arcade version. However, I ended up straying from them a little when I made the overlay. The right-hand button cluster should use the correct dimensions. However, it's position in relation to the joystick is not quite correct, and the overall width of the panel is totally arbitrary (so it is not likely to fit in an original arcade machine).
